Power metter S 110

Power metter S 110

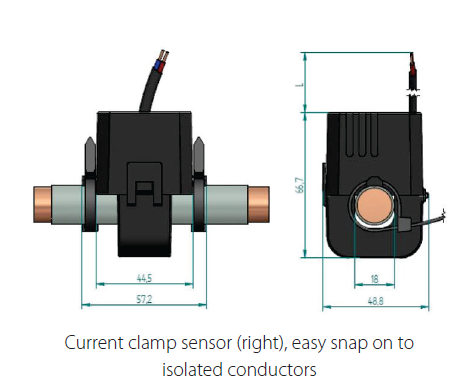

The SUTO Power Meters are designed for easy installation and high accuracy. It measures the actual power consumption in kW and accumulates the Energy consumption in kWh of  a 3-phase load. Additionally other measured parameters such as current, voltage, cos phi etc are available as well. Through 3 clamp sensors the current is sensed. Hat rail, wall mountable and portable versions are available.

Download

  1. Instruction Manual

  2. Datasheet




Technical Data

Technical data Power Meter S 110
Nominal voltage (L-N, L-L)

277 / 480 VAC

Clamp sensor input range 0...1 A
Available clamp sensors 200 A, 500 A, 1000 A
Power range   Up to  690 kW
(depending on clamp sensor)
Accuracy Voltage: 0.2%
Current:  0.5%
Clamp:   class 1
Energy:  class 0.5
Output Modbus/RTU
Supply 24 V DC / 0.5 W
Operating Temperature -5...+55°C
Dimensions  hat rail version: 110x90x31mm
wall version:      190x155x85mm
Portable:           177x177x60mm

Application




In above illustration a power meter is installed directly into the  connection box of the compressor. The current clamps can be easily fixed with fasteners around the supply wires. The voltage connection can be drawn from other available connection points. A separate cable connects the SUTO power meter to the S 330/331 with Modbus/RTU and 24 VDC power supply. The power meter could also be installed into the connection cabinet where the power supply for the compressor is coming from. If no hat rail mounting is available, there is a wall mountable version of the SUTO power meter.


--------------------------------------------------------------------------------------------------------------------------------------------------------------------------
