S 220 Dew point sensor (-100 ºC ... 0 ºC)

The SUTO dew point sensor S 220 provides reliable and long term stable dew point monitoring in industrial applications.
SUTO is using a new sensor technology which has superior signals at very low moisture levels thus providing reliable measurements down to –100 ºC.

A stainless steel sinter filter with pore sizes below 30 μm protects the sensor from particles. It’s designed for applications where  very low moisture levels needs to be detected.

The measured dew point is output through a 4-20 mA signal (3-wire or loop powered). Sensor parameters such as analogue output scaling, physical units, can be easily changed by using SUTO service kit.


Download
  1. Instruction Manual

  2. Datasheet



Features:

• Very fast response time ensures safe and reliable indication whenever dew points are out of valid ranges

• Small size makes it ideal for dryer installations

• Measures dew points down to –100 °C

• New SUTO sensor technology

• Version with integrated pressure measurement

• Various output versions available: 1 x 4...20 mA, 2 x 4...20 mA, RS-485 (Modbus), 4...20 mA loop powered

• IP65 casing provides robust protection in rough industrial environment

• Can be installed directly into dryers through G 1/2” thread

• High accuracy of 2 °C dew point

• M12 connector


Technical Data:

Technical data S 220
Measuring range
                          Dewpoint
                         Temperature
                          Pressure

-100°C ...0 °C
-30...70 °C
- 0.1...1.6 MPa.
Accuracy          Dewpoint
                         Temperature
                          Pressure

 2 °C
0.3 °C
0.05 bar.

Pressure range -0.1 ... 1.6 MPa
Power supply 12 ... 30 VDC / 30mA

Ambient conditions

Transport temperature

0 ºC ... +50 ºC
-30 ºC ... +70 ºC

Response time t90
-80 ºC ... -20 °C: 20 sec
-20 ºC ... -80 °C: 3 min
Output signal
4…20 mA, 3-wire (0699 0220, 0699 0221, 0699 0223)
Modbus / RTU (0699 0222, 0699 0224)
Loop powered 4...20 mA (0699 0025)
Analog output scaling
4 mA --> -100 °C
20 mA --> +20 °C

Connector

Wire sizes

Casing

M12, 5 pole

Connector terminals support 0.14 … 0.75 mm²

Process connection: stainless steel
Casing: zinc alloy
Classification IP65
Process connection G 1/2”  thread (ISO 228/1)
Sensor protection
A: stainless steel sinter filter, pore size < 30 μm
B: Perforated sensor cap (standard, requires a
prefilter 0.1 μm)
EMC According to IEC 61326-1

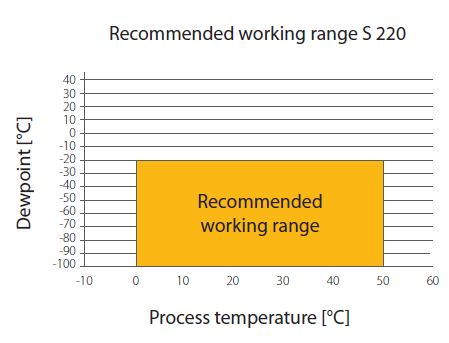

Stated accuracy under following conditions:

• Ambient temperature 23 °C ± 3 °C
• Process temperature 23 °C ± 3 °C
• Ambient humidity < 95%, no condensation
• Airflow > 2 l/min at sensor tip

Application:

In hazardous environment where dew point needs to be monitored FA 300-EX is the right solution.

Sensor Technology

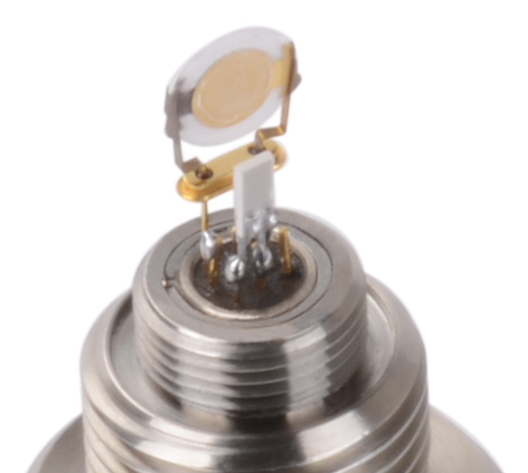

The innovative QCM Sensor Technology used by SUTO measures moisture changes in ppb range.

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------

If you have any querry, please contact us for further details!

Ms. Tham Tran (Alice)
Cell phone: (+84) 907 16 83 73
Email: thamtran@gotek.com.vn
