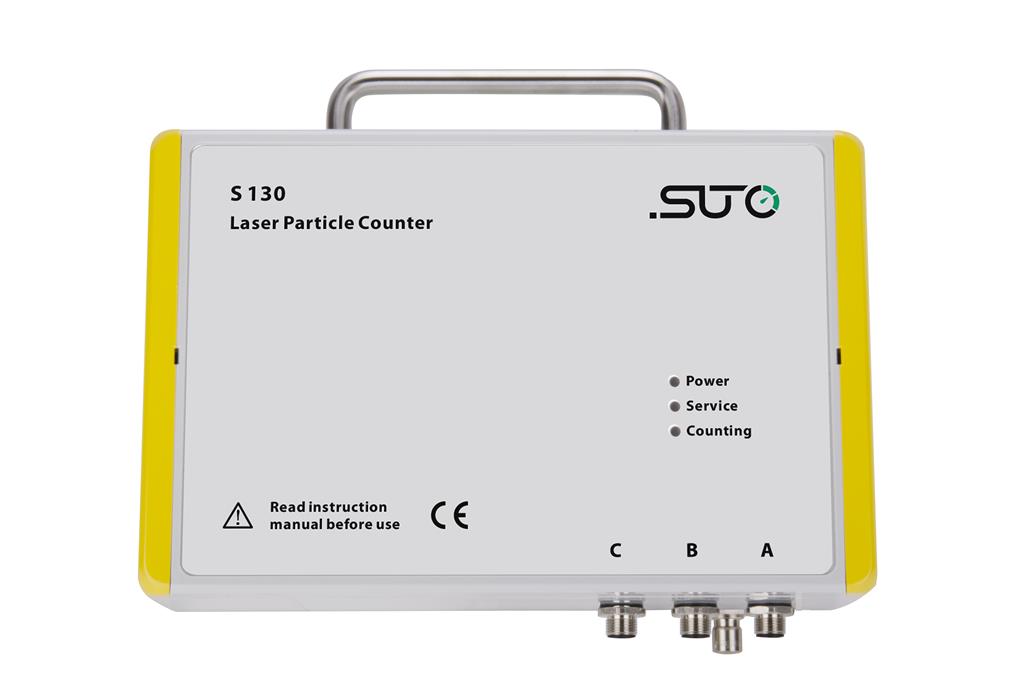

S 130 Laser particle counter

S 130 is a new generation laser particle counter optimized for applications in compressed air or compressed gases. With

quality in mind and with the knowledge of customers needs this instrument is designed for continuous operation 24 hours,

7 days a week. Depending on the selected model there is sensitivity available from 0.1 m up to 5.0 m. S 130 can fulfill

the requirements stipulated in the compressed air standard ISO 8573-4. The measurement values represent the particle

counts per ft³, l or m³ or alternatively in g/m³. Settings can be done through the integrated display, an external SUTO display

or through the service software.


Download
  1. Instruction Manual

  2. Datasheet




Features

  • Easy connection to compressed air through 6 mm quick-connector.
  • Can be used as portable as well as stationary instrument.
  • Particle sizes from  0.1-  0.5 μm (depending on model).
  • Optional display
  • Measures according to ISO-8573-4.
  •  Output signals:
                   - RS-485, Modbus/RTU
                   - SDI (CS-iTEC internal signal)
                   - Relay switch (NO).
  •  Connectable to SUTO displays and data loggers as well as third parties displays and control units.
  •  Integrated 5” touch screen and data logger (option).




Technical Data:


Measuring medium

Compressed air and gases free of corrosive,
aggressive, caustic and flammable constituents
Models:  S 130-A
               S 130-B
               S 130-C
               S 130-D
               S 130-E
               S 131
2 channels: 0.3 - 0.5 m, >0.5 m
4 channels: 0.2 - 0.3 m, 0.3 - 0.5 m, 0.5 - 1.0 m, >1.0 m
4 channels: 0.5 - 1.0 m, 1.0 - 3.0 m, 3.0 - 5.0 m, >5.0 m
2 channels: 0.5 - 5.0 m, >5.0 m
4 channels: 0.3 - 0.5 m, 0.5 - 1.0 m, 1.0 - 5.0 m, >5.0 m
4 channels: 0.1 - 0.5 m, 0.5 - 1.0 m, 1.0 - 5.0 m, >5.0 m.
Counting efficiency

50% (per JIS)
System pressure 0.3 ... 0.8 MPa
Flow rate
S 130: 2.83 l/min
S 131: 28.3 l/min
 Sampling rate One sample per minute
Calibration NIST traceable
Measuring unit
Particle counts per ft³, l or m³ , selectable
Concentration in μg/m³
Gas connection 6 mm quick connect
Electrical connection

M12 connector
Calibration     NIST traceable
Gas temperature  0 ºC ... +40 ºC (at inlet)

Ambient  conditions

Transport temperature

Output signal





Power supply

Application

Casing / dimensions

Classification

EMC

Settings

Weight

10 ºC ... +40 ºC

-30 ºC ... +70 ºC

RS-485, Modbus/RTU

SDI (internal CS-iTEC signal)
4 ... 20 mA
Alarm relay: NO, 32 VDC / 500 mA.


24 VDC, 5 W

Downstream of filters wherever upstream drying and filtration is applied.

PC, Al alloy, 271 X 205 X 91 mm.

IP65.

According to IEC 61326-1.

Various sensor settings can be performed through the related service software.

1900 g


Display & data logger

5” touch screen, 100 million values (option)


Application

• Medical air

• Pharmaceuticals

• Breathable air
• Marine air
• Food and beverage
• Medical engineering
• High speed trains
• Semiconductor fabs
• Conveyance of hygroscopic food
• High tech processes
• Electronics industry.









-----------------------------------------------------------------------------------------------------------------------------------------------------------------------

If you have any querry, please contact us for further details!
