S 430

S 430 PITOT TUBE FLOW / CONSUMPTION SENSOR

S 430 is based on the pitot tube principle to measure flow. Properly installed (refer to instruction manual for details) the sensor can measure in wet and dirty gases as occurring, for example, at the discharge of a compressor.
The sensor features long term stability , wide turn-down ratio and good temperature stability. It can be used in compressed air and non-corrosive gases.
Through a 1/2” G-type ball valve the sensor can be inserted into the pipe under pressure. Various output signals allow the sensor to be connected to SUTO-iTEC displays and/or third party displays and PLCs.


Features

• Flow and consumption measurement in wet air or high mass flow / velocity applications

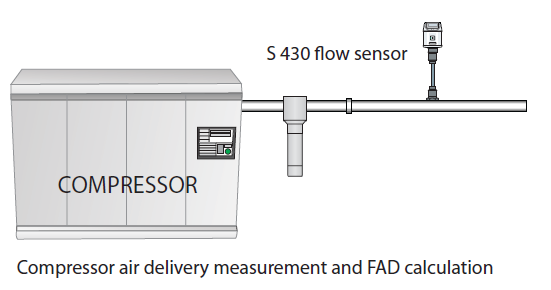

• Measurement at compressor outlet
• Tube diameters of 1’’ to 10” through center installation, bigger diameters through non-center installation
• Insertion type, easy installation under pressure through ball valve possible
• High temperature applications up to 200 °C
• No mechanical wear parts
• All parts which are in contact with flow medium are made of stainless steel
• Compressor-FAD-Measurement
• Steam mass flow and consumption measurement


Technical data S 430


  Technical data S 430

Flow range

Refer to Instruction Manual

Pressure range

0 ... 1.6 MPa



Temperature range

-40 °C ... +200 °C



Accuracy

Flow: Pressure: Temperature:

0.5% F.S.

0.5% F.S.

0.5 °C

Reference  conditions

Programmable, default P =1000 hPa(a), T = 20 °C

Medium

Wet and dry air, non-corrosive gases, steam

Output signals

SDI (SUTO-iTEC specific)

4 ... 20 mA and Pulse (optional)

Modbus/RTU  (optional)

MBUS (optional)

Medium temp.

-40 °C ... +200 °C



Ambient temp.

-20 °C ... +60 °C



Power supply

24 VDC, 150 mA



Display option

2.4” color graphics display with keypad

Process  connection

1/2” G type



Sensor material

Stainless steel 1.4404 (SUS 316L)




Flow ranges

Inch







Volumetric flow



Inch

mm

         m3/h



m³/min



     cfm





Min

    Max

Min

Max

Min

Max

1



15.5

319

0.25

5.3

9

188

1¼”



27.5

575

0.45

9.6

16

338

1½”



38

791

0.65

13.2

22.5

466

         2”



62

1295

1.05

21.6

36.5

       762

     2½”



106

        2215

1.75

36.9

62.5

     1303

         3”



147.5

3073

2.45

51.2

86.5

       1809

4”

100.0

225.5

4711

3.75

78.5

133

2772

5”

125.0

353.5

7378

5.9

123.0

208

4342

6”

150.0

509.5

10637

8.5

177.3

300

6260

8”

200.0

908

18955

15.15

315.9

534.5

11155

10”

250.0

1420.5

29652

23.7

494.2

836

17450



Flow range for Air at 6 barg, 50 °C and 90% humidity. For other gas and condition please download Flow Range software from www.suto-itec.com.
All above flow rates are standard flows with reference to P = 1000 hPa(a) and T = 20 °C.


---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
