S 401 versatile flow/consumption sensor (insertion type)

The version with display shows the volumetric flow and the total compressed air consumption. Via the keyboard tube diameters and the consumption counter can be set.

Download

  1. Datasheet_S 401

  2. Instruction manual S 401


Features S 401:

• Tube diameters of DN25 to DN500.
• 2 installation types: center installation and 100 mm insertion depth installation for bigger pipes (> DN250)
• Installation under pressure through 1/2” ball valve

-----------------------------------------------------------------------------------------
• Measures standard flow, mass flow, consumption and temperature
• Thermal mass flow, independent of pressure and temperature changes
• IP65 casing provides robust protection in rough industrial environment
• Very fast response time
• High accuracy and wide measuring range

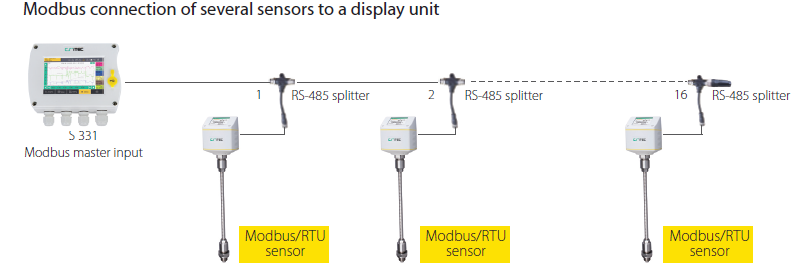

• Isolated mA and pulse output signals or Modbus/RTU interface
• Selectable gas type (some gases require real gas calibration!)
• App for mobile phones and tablets for sensor settings via BlueTooth
• Sensor can be calibrated in 2 different gases

Technical Data:

Technical data S 401
Measured unit m³/h, m³/min, l/min, cfm, m/s, kg/min, kg/h, kg/s
Accuracy ± 1.5% of reading + 0.3% full scale
Medium Air, gas, non explosive.
Operating temperature

-30 ... +140 ºC probe tube
-30 ... 70 ºC casing

-10 °C ... +50 ºC casing with display

Operating pressure Up to 5.0 MPa
Analogue output Signal: 4 ... 20 mA, isolated
Scaling: 0 ... max range
Max.load: 250R
Pulse output
Signal: Isolated switch output, normally open, Max 30 VDC, 20 mA
Scaling: 1 pulse per consumption unit
Power supply 15 ... 30 VDC/ 200 mA



Volumetric flow ranges S 401

Inch

DN

mm

CS 401-S

[m³/h]

CS 401-M

[m³/h]

CS 401-H

[m³/h]

1″

DN25

27.3

0.5~147.7

0.6~294.7

0.73~356.85

1¼”

DN32

36.0

0.9~266.3

1.2~531.5

1.45~643.51

1½”

DN40

41.9

1.2~366.7

1.5~731.9

1.82~886.18

2″

DN50

53.1

2.0~600.1

2.5~1197.6

3.03~1450.04

2½”

DN65

68.9

3.5~1026.5

5.0~2048.6

6.05~2480.44

3″

DN80

80.9

5.0~1424.4

7.0~2842.7

8.47~3793.61

4″

DN100

100.0

10~2183.3

12~4357.2

14.52~6426.18

5″

DN125

125

13~3419.6

18~6824.4

21.78~9453.34

6″

DN150

150

18~4930.1

25~9838.9

30.25~13946.95

8″

DN200

200.0

26~8785.6

33~17533.3

39.93~21229.51

10″

DN250

250.0

40~13743.9

52~27428.5

62.92~33210.69

12″

DN300

300.0

60~19814.8

80~39544.1

96.8~47880.39


Stated flow values are at standard conditions of Ps=0.1MPa and Ts=20°C with medium air.

The table above shows flow ranges up to 300 mm pipe diameter at standard conditions in air. At other standard conditions and in other gases flow ranges are different and data are available on request

In larger pipe diameters flow can also be measured.


Application









---------------------------------------------------------------------------------------------------------------
If you have any querry, please contact us for further details!

Ms. Tham Tran (Alice)
Cell phone: (+84) 907 16 83 73
Email: thamtran@gotek.com.vn
