S 415/418 THERMAL MASS FLOW METER

The SUTO S 415 and S 418 thermal mass flow meters offer gas flow and consumption measurement directly at the point of use. These highly economical units will help you improve system efficiency, while helping reduce compressed air usage and operating costs. Both versions come standard with Service App to help the user quickly and easily check the flow meter readings or adjust the settings via the SUTO flow meter App.

The S 415 is best suited to general process work where low cost and broad monitoring is required, while the S 418 is ideal for remote locations or high accuracy with its built in data logger and optional pressure sensing.


Down load



Features / Benefits

• Thermal mass flow measurement, independent of pressure and temperature
• Eco Version S 415, Pro Version S 418
• Service App for setup and configuration
• Accuracy of 1.5% o. RDG (S 418) and 3% o. RDG (S 415)
• Output signal options:
- analogue 4 ... 20 mA and pulse
- digital Modbus
- digital M-Bus
• Simple installation, no straight pipe required
• Measures the full flow, no bypass measurement
• 4-Digit LED display

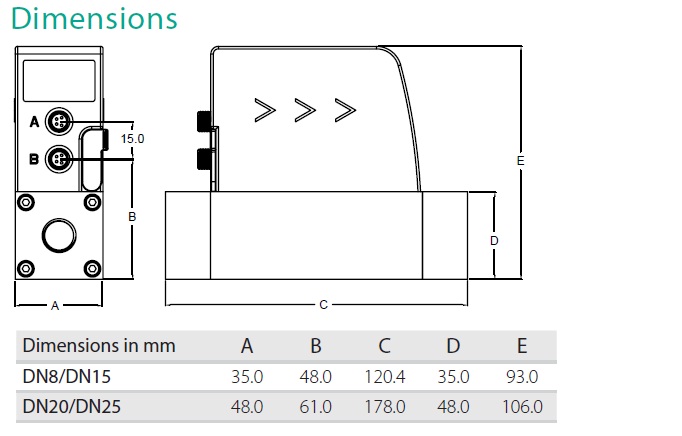

• Available in DN8, DN15, DN20, DN25 process connection G inner thread
• S 418 comes standard with integrated data logger
• Optional pressure measurement available for S 418

Technical data
